Gravity Fall Metal Detector
With a compact design and small footprint, this metal detector is suitable for inspecting powder, granules and other forms of bulk products.
Product Detail

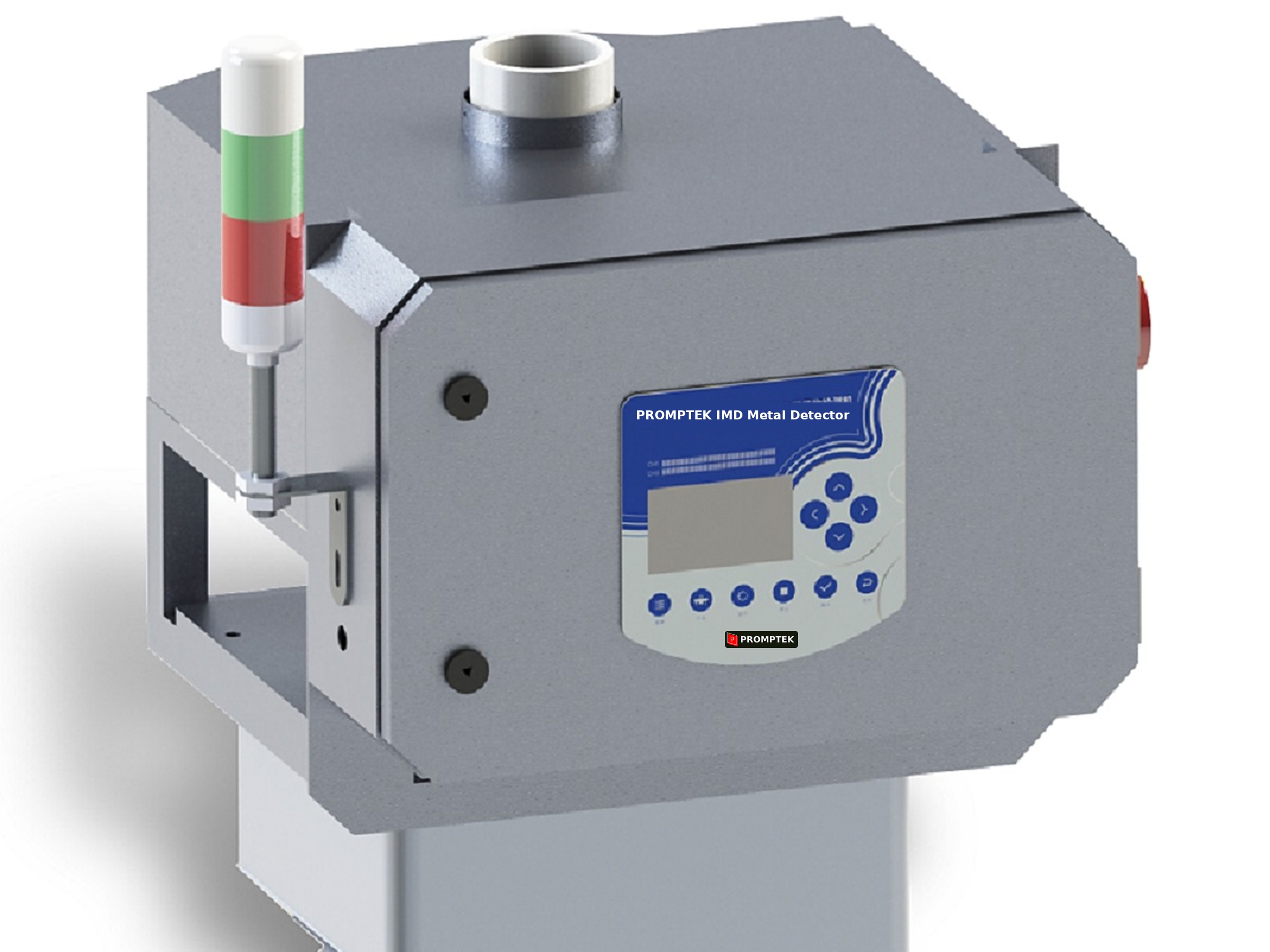

With a compact design and small occupied space, the Promptek Gravity Fall Metal Detector is suitable for the detection of powder, granule or other forms of bulk products. Product falls freely through the detection pipe and any metal contaminant is rejected automatically by the flap rejecter.
Key Advantages
Compact Design
Small footprint that fits easily into existing gravity-fed lines.
Bulk Product Inspection
Suitable for powders, granules and other free-falling bulk products.
Automatic Flap Rejecter
Contaminated product is diverted automatically without stopping the flow.
Stainless Steel Build
SUS304 construction for hygiene and durability.
Specifications
Swipe the table sideways to see all models →
| Model IMD-P | Detection Diameter (mm) | Capacity (t/h)² | Fe Sensitivity¹ Φd (mm) | SUS Sensitivity¹ Φd (mm) |
|---|---|---|---|---|
| IMD-P 75 | 75 | 3 | 0.5 | 0.8 |
| IMD-P 100 | 100 | 5 | 0.6 | — |
| IMD-P 150 | 150 | 10 | 0.6 | 1.2 |
| IMD-P 200 | 200 | 20 | 0.7 | 1.5 |
| Common Parameters | All IMD-P Models |
|---|---|
| Rejecter Mode | Automatic flap rejecter |
| Pressure Requirement | ≥ 0.5 MPa |
| Power Supply | AC220V (Optional) |
| Main Material | Stainless steel (SUS304) |
- The technical parameters above are the result of sensitivity tests detecting only the test sample inside the pipe. Actual sensitivity is affected by the products being detected and working conditions.
- Detecting capacity per hour is related to product weight; table values are based on the density of water (1000 kg/m³).
- Requirements for different sizes can be fulfilled on request.
