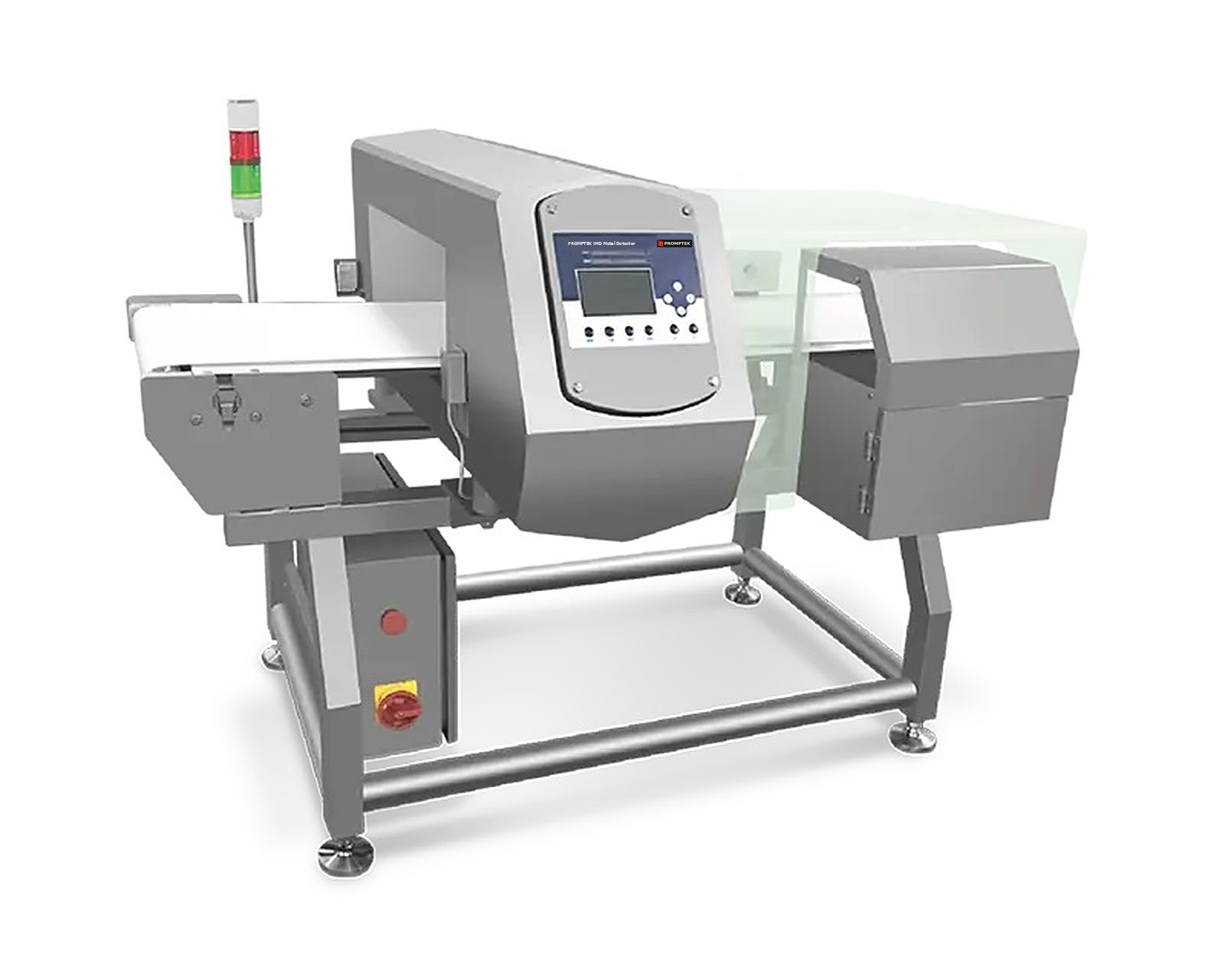

High Configuration Conveyor Belt Metal Detector
- Frequency-selecting function: two frequencies can be chosen to match different products
- Dual-detection system ensures Fe and SUS achieve their best sensitivity
- Auto-balance function ensures stable detection
Product Detail
The Promptek High Configuration Conveyor Belt Metal Detector is the advanced model of the IMD range, built for demanding inspection lines. Dual-frequency operation, double-channel checking and an automatic balance function deliver stable, high-sensitivity detection of ferrous and stainless steel contaminants, with a touch-screen interface, variable belt speed and an easy-wash round frame rated up to IP65.
Advantages
Frequency Selection
Two frequencies can be chosen to match different products.
Dual-Detection System
Ensures Fe and SUS each achieve their best sensitivity.
Auto-Balance Function
Ensures stable, reliable detection.
Specifications
Swipe the table sideways to see all models →
| Model | IMD-H Series | |||||
|---|---|---|---|---|---|---|
| Specifications | 4008, 4012 | 4015, 4018 | 5020, 5025 | 5030, 5035 | 6025 | 6030 |
| Detection Width | 400mm | 500mm | 600mm | |||
| Detection Height | 80mm, 120mm | 150mm, 180mm | 200mm, 250mm | 300mm, 350mm | 250mm | 300mm |
| Sensitivity (Fe) | Φ0.5mm, Φ0.7mm | Φ0.7mm, Φ0.8mm | Φ1.0mm, Φ1.2mm | Φ1.5mm, Φ1.5mm | Φ1.2mm | Φ1.5mm |
| Sensitivity (SUS304) | Φ1.0–1.2mm, Φ1.5mm | Φ1.5mm, Φ2.0mm | Φ2.0mm, Φ2.5mm | Φ2.5–3.0mm, Φ3.0–3.5mm | Φ2.5mm | Φ3.0mm |
| Belt Width | 360mm | 460mm | 560mm | |||
| Loading Capacity | ≤ 10kg | ≤ 50kg | ≤ 100kg | |||
| Display Mode | Touch screen | |||||
| Operation Mode | Touch input | |||||
| Product Storage Quantity | 100 kinds | |||||
| Frequency | Dual-frequency | |||||
| Checking Channel | Double channel checking | |||||
| Belt Speed | Variable speed | |||||
| Rejecter Mode | Alarm and belt stops (Rejecter optional) | |||||
| IP Level | IP54 / IP65 | |||||
| Mechanical Design | Round frame, easy wash | |||||
| Surface Treatment | Brushed stainless steel, Sand blasted | |||||
- The technical parameters above are the result of sensitivity tests detecting only the test sample on the belt. Actual sensitivity is affected by the products being detected, working conditions and speed.
- Requirements for different sizes can be fulfilled on request.
